6P6C 180 Degree Rj11 Rj45 Tool-Less Keystone Jack 8p8c Utp

Features:

1. The product meets the standards of TIA/EIA568-C.2 and ISO/IEC1180-2002 ed2.0.

2. It adopts cast aluminum alloy casing, and the full shielding design greatly improves the shielding performance and effectively prevents EMI (electromagnetic interference).

3. The contact reed and IDC terminal are all plated with tin phosphor bronze, the bottom layer is plated with 150u Inch, and the outer layer is plated with 50u Inch, which improves the contact performance and transmission performance of the module.

4. The unique oblique 45 degree IDC free line crimping design, the termination is firm and the construction is easier.

5. Mechanical properties: insertion force 350 g; pull-out force 150g, plug-in cycle >1050 times, termination >350 times.

6. Electrical performance: contact resistance <4.3 mΩ; insulation resistance > 500mΩ, lead current: 1.5A.

7. Compatible with all YUEDAO 86 type panels and 19-inch unshielded empty shelves.

Standardization:

1. ISO/IEC 11801-202 ed2.0

2. EN50173-2007 Class F(600MHz)

3. EN 55022 Class B& EN 50082-1(EMC)

4. ANSI/TIA 568-C.2

Spectifications

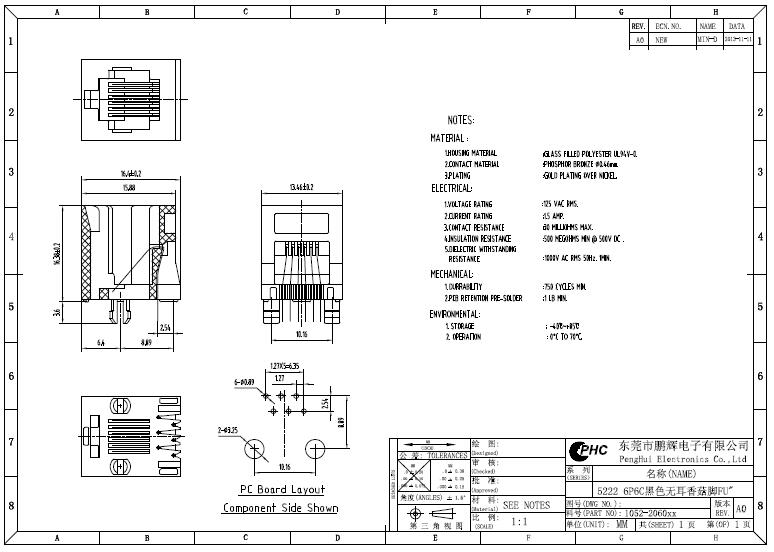

Drawing

RJ45 Without Transformer series

PengHui Electronics Co., LTD was founded in July 2006,is Located in ChangAn Dong Guan Guang Dong of China,Factory covers an area of 8000 square meters,More than 300 employees.In 2009 August we set up a production factoryin HuNan; In 2010 we got the ISO9001-2008 and UL Certification. PengHui Focus on design, production, sales&services and provide ODM/OEM in connector.

At present Company has10 units Stamping machine, 20units injection molding,more than 30 units Automata, and many test equipment,Except the plating ,from Mold design ,injection molding, stamping,assembly, packaging,testing process,are all by our factory. So we can control the cost and quality better. Our main product: Modular RJ45 JACK, RJ1,RJ45 with transformers connectors, Pin header&Female header,FPC,SFP,USB,CARD CONNECTOR etc,.

Since the company found ,PengHui have more and more high tech talen and advanced manufacturing technology,Our product are exported to the Americas,the Europe, the Middle East,Southeast Asia and other places.And also established strategic partnership of long-term. To many well known customer in foreign. Our clients include consumer electronics,home appliances,communications equipment,power system, Pay system,and securlty,automtive,medical and other industries. The Main customers:HUAWEI, MOTO, HITACHI, HISENSE, FLEXTRONICS, LIANDI, PAX, STAR-NET,NEWLAND AND so on.

After nearly ten years of efforts, with innovative products ,excellent quality,accurate delivery and excellent service,great to win customers trust and praise, and establish a good reputation within the industry,We believe: customer has a bright future, we just have beautiful tomorrow!
