90 Degree Unshielded RJ45 RJ11 Connector Modular Jack
Spectifications
| Categories | Connectors, Interconnects |
| Modular Connectors |
| Application-LAN | ETHERNET(NoN POE) |
| Connector Type | RJ45 RJ12 RJ11 |
| Number of Positions/Contacts | 4P4C 6P6C 8P8C |
| Number of Ports | 1x1 |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.537" (13.65mm) |
| LED Color | Without LED |
| Shielding | Unshielded |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
Quality
•Lean production management.
•100% Tested (Not Just Batch Tested).
•Quality Guarantee:5 Years.
Certification
•ISO 9001:2008,
•ROHS CE FCC Compliance
•Active Environmental Policy.
Have R&D dept
•OEM Service Offered,Design Service Offered.
•Engineer Can Design Products As You Need,Developer Tooling As
Customer Require.
Material
1.Housing | ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0)
LCP(UL94V-0) |
2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel |
3.Shield | 0.20~0.25mm thickness brass with tin plated |
4.Gold Plating | 1u inch,3u inch,6u inch,15u inch,30u inch,50u inch |
6.RoHS peak wave solder | RoHS peak wave solder temperature rating 240°C±5°C |

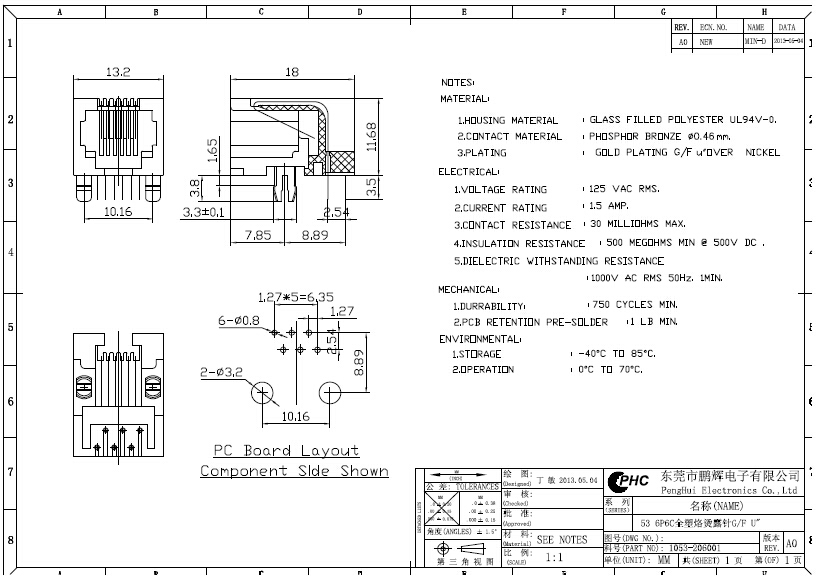

Drawing
6P6C / 6P4C / 6P2C / RJ11 RJ45 Jack Full Plastic Single Port Female
Network
Why Choose PengHui
Quality :
World’s Leader supplier of Integrated RJ45 Connector and PCB
connector
Except the plating ,From Design tooling, stamping ,Injection
molding, assemble, Testing , packing .All the step are
doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Unit Price
Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco,
Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as
possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei
,Guangdong (HQ)
With large scale of production lines, we can reach to cost
reduction at the most extent
Design&Technical strength
We have many more than 20years experience in connector industry
engineer can support your new
project.Design a new tooling time:30-45 workdays
Production&Testing
PHC have more than 30 units automation equipments to product as
possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary
corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
Case.1 | Stock | 25% |
Case.2 | 3-4 Weeks | 70% |
Case.3 | 5-6 Weeks | 5% |
Service
PHC Offer good pre-sales & after-sales service &Strong
technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to
offer the good quality product and save
3. time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping
safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly
returned, replacement,,or repair
8. kits if customers are not satisfied)
