Phosphor Copper RJ45 Ethernet Jack Compliant With IEEE 802.3 Standard

Specifications

Eceatrical

1.voltage Rating:125 vac
2.Insnlation Resistance:500M min
3.Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min

Mechanical

1.Operating:750 cycles min

Materical

1.Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2.Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch

Environmental

1.Working Temeperature:-20℃to 75℃
2.Storage Temeperature:-45℃to 85℃

Mates with modular plug conforming to FCC part 68,subpart F.

Electrical Specifications:

1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec

Lead-free process,compliant RoHS

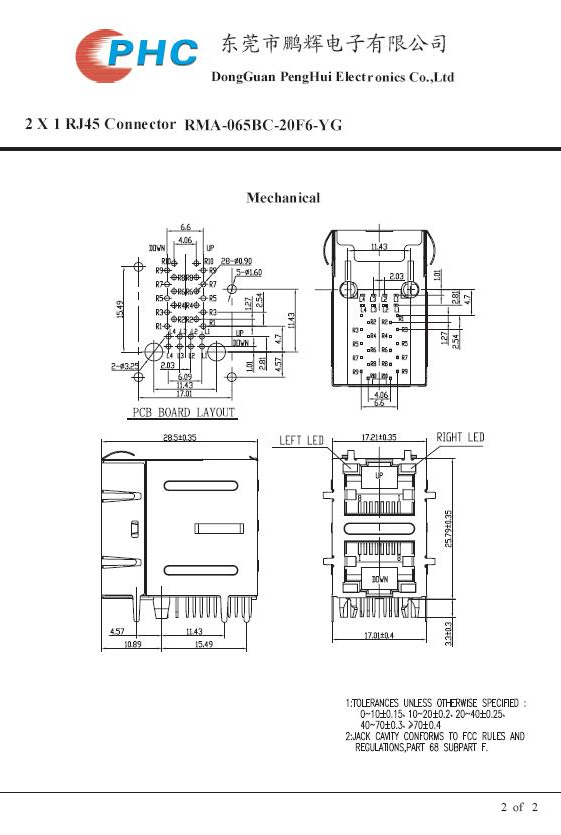

Drawing

RJ45 Ethernet Jack , RJ45 Jack 2P Filter With LED, RMA-065BC-20F6-YG
