    10 100 Base-T Female RJ45 Network Jack With LED

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : RBA-023B-06F6-2Y
    Certification : ISO 9001 :2008 , RoHs , SGS
    Price : USD 0.57~1.0 PCS
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5,000,000pcs/Month
    Delivery Time : 10 - 25 work days
    • Product Details
    • Company Profile

    10 100 Base-T Female RJ45 Network Jack With LED

    Ethernet 10 / 100 Base -T Female RJ45 Modular jack with Usb Connector/ Shield / Led

    Product Description:

    100 Base-TX (Fast Ethernet) RJ45 1x1 Tab-UP with LEDs 8-pin (J1 series) and 6-pin (JP series)
    integrated magnetics connector, designed to support applications, such as ADSL modems,
    LAN-on-Motherboard, and Hub and Switches.


    Features and Benefits:

    • RoHS peak wave solder temperature rating 260°C Suitable for CAT 5 & 6 UTP cable or better
    • Meets IEEE 802.3 specification
    • 350μH minimum OCL with 8mA bias current
    • High performance for maximum EMI suppression

    Part Number

    Manufacturer
    Part Number

    Manufacturer

    Description

    RBA-023B-06F6-2Y

    RBA-023B-06F6-2Y

    PHC

    Ethernet 10 / 100 Base -T Female Rj45 Usb Connector With Shield And Led


    Series

    Connector Type

    Applications

    Mounting Type

    Connectors, Interconnects

    PHC RJ45 USB

    10/100 Mbps

    Side Enter


    Orientation

    Termination

    LED Color

    Shielding

    90° Angle (Right)

    Solder

    Green/Yellow

    Shielded , EMI Finger



    Feature:
    .Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
    .Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
    .Housing:Thermoplastic LCP UL94V-0 rated
    .Operating Temperature:0℃ --70℃
    .Storage temperature:-40℃--85℃
    Peak reflow temperature rating 245℃
    .Minimum1500Vrms isolation perIeee 802.3requirement


    Electrical Specifications:
    1.Turns Ratio:Tx & Rx+1:1±5%
    2.Insertion Loss:1-30MHz:-1.0dB Max
    3.Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
    4.Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
    5.Crosstalk:1-100MHz:-30dB Min
    6.OCL:100KHz,0.1V,8MADC:350uH Min
    7.Hi-Pot:1500VAC,1mA,1Sec
    Lead-free process,compliant RoHS

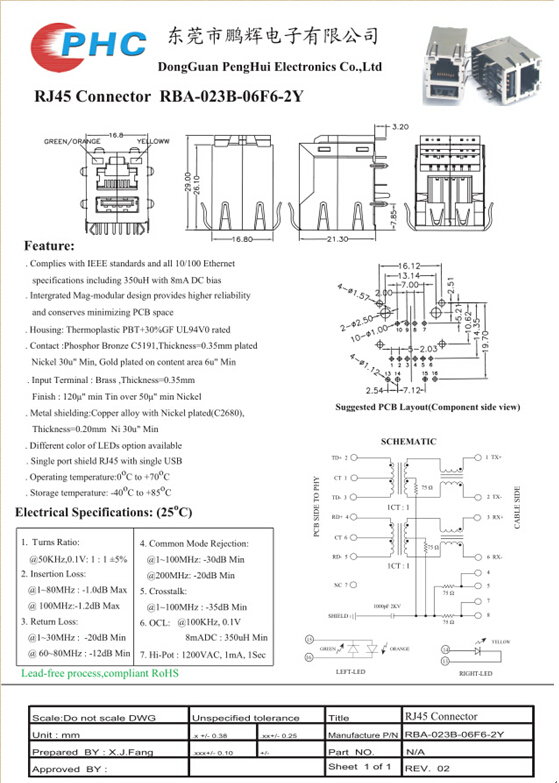

    Drawing




    Service

    PHC Offer good pre-sales & after-sales service &Strong technical support

    · New Project: Strong technical and ideal support your new design

    · Existing projects: Try to help customer to save the cost to offer the good quality product and save time.

    · Free Samples:3-5 PCS of each part number

    · Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    · Customer complaint:24-48 hours reply 8D report

    · Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair kits if customers are not satisfied)



    Main customer




    Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

    ------------- PHC Sales & Support Team
