    2X2 Port 10 100 1000M Shielded RJ45 Ethernet Jack

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : RJ45
    Certification : ISO9001;ISO14001;SGS;
    Price : Negotiable price
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 5000000PCS/Week
    Delivery Time : 7 - 10 Work Days
    • Product Details
    • Company Profile

    2X2 Port 10 100 1000M Shielded RJ45 Ethernet Jack

    PHC 2 x 2 Port 10 / 100 / 1000 Mbps Shielded RJ45 Ethernet Jack W/O LED


    Product Specification:

    Specification:Stacked RJ45Cross Part NO:RMA-065C8-40F9-GO
    Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
    Latch:Tab upFiles:PDF/3D/ISG/Stp/Step/Datasheet

    Product Details:

    1. Current Rating1.5A
    2. Voltage Rating125v
    3. Contact Resistance30milliohm Max
    4. Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    5. Insulation Resistance500 MΩ MIN @ 500V DC.
    6. Mating/Unmating Force2.2KG.F MAX.
    7. Retention Strength7.7KG.F MIN Between Jack And Plug
    8. Operating Life750 Cycles MIN.
    9. Operation Temperature-40℃ to +85℃
    10. Storage Temperature-40℃ to +85℃
    11. Insert MaterialUL94V-0
    12. Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze

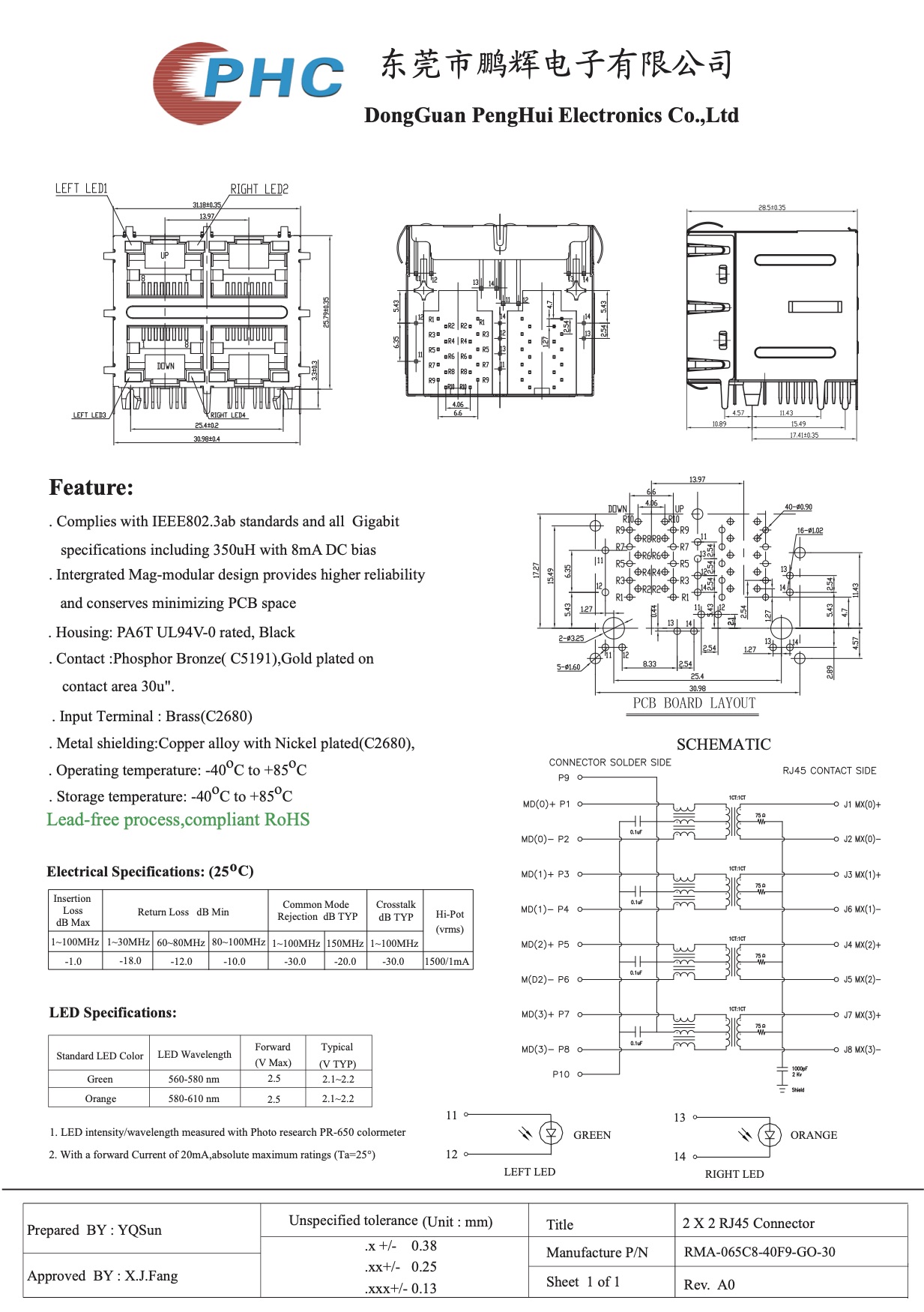

    Drawing

    Quality 2X2 Port 10 100 1000M Shielded RJ45 Ethernet Jack for sale
