RJ45 Ethernet Jack Side Entry Jack Vertical Integrated 10 / 100 / 1000 Magnetics

Spectifications

Feature:
1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature:0℃ --70℃
5. Storage temperature:-40℃--85℃
Peak reflow temperature rating 245℃
1. Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:

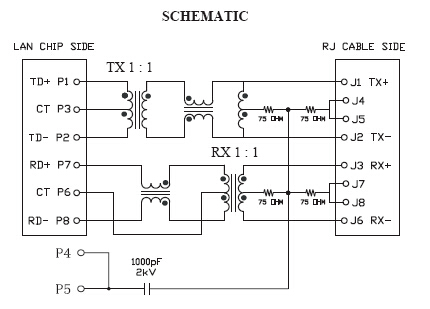

1. Turns Ratio:Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec
Lead-free process,compliant RoHS

Drawing

RJ45 Ethernet Jack Side Entry Jack Vertical Integrated 10 / 100 / 1000 Magnetics (PHC)



Line Drawing



LED



Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .All the step are
doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)



Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong (HQ)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Metal And Terminal Stamping ; Plastic Injection


Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1) New Project: Strong technical and ideal support your new design
2) Existing projects: Try to help customer to save the cost to offer the good quality product and save
3) time.
4) Free Samples:3-5 PCS of each part number
5) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6) Customer complaint:24-48 hours reply 8D report
7) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8) kits if customers are not satisfied)

Main Customers














Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team

PengHui Electronics Co., LTD was founded in July 2006,is Located in ChangAn Dong Guan Guang Dong of China,Factory covers an area of 8000 square meters,More than 300 employees.In 2009 August we set up a production factoryin HuNan; In 2010 we got the ISO9001-2008 and UL Certification. PengHui Focus on design, production, sales&services and provide ODM/OEM in connector.

At present Company has10 units Stamping machine, 20units injection molding,more than 30 units Automata, and many test equipment,Except the plating ,from Mold design ,injection molding, stamping,assembly, packaging,testing process,are all by our factory. So we can control the cost and quality better. Our main product: Modular RJ45 JACK, RJ1,RJ45 with transformers connectors, Pin header&Female header,FPC,SFP,USB,CARD CONNECTOR etc,.

Since the company found ,PengHui have more and more high tech talen and advanced manufacturing technology,Our product are exported to the Americas,the Europe, the Middle East,Southeast Asia and other places.And also established strategic partnership of long-term. To many well known customer in foreign. Our clients include consumer electronics,home appliances,communications equipment,power system, Pay system,and securlty,automtive,medical and other industries. The Main customers:HUAWEI, MOTO, HITACHI, HISENSE, FLEXTRONICS, LIANDI, PAX, STAR-NET,NEWLAND AND so on.

After nearly ten years of efforts, with innovative products ,excellent quality,accurate delivery and excellent service,great to win customers trust and praise, and establish a good reputation within the industry,We believe: customer has a bright future, we just have beautiful tomorrow!
