    LED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder Termination

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : 1060-208051
    Certification : ISO:9001;ISO:14001
    Price : $0.1-$2
    Payment Terms : L/C, T/T
    Supply Ability : 5,000,000 PCS / Month
    Delivery Time : 7 - 10 Work Days
    • Product Details
    • Company Profile

    LED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder Termination

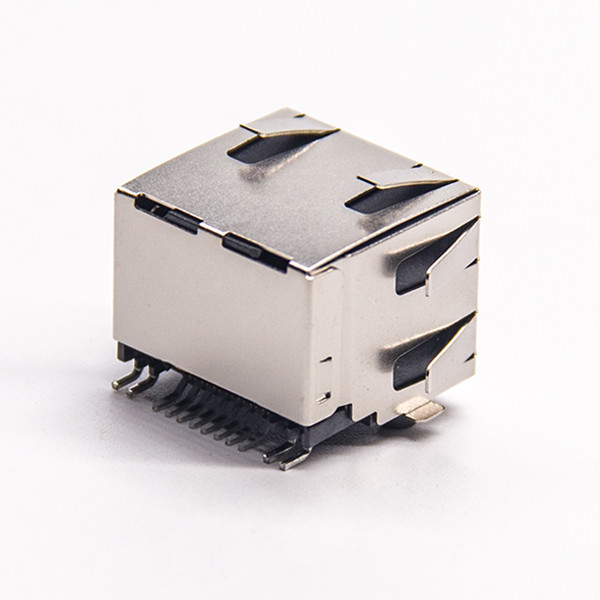

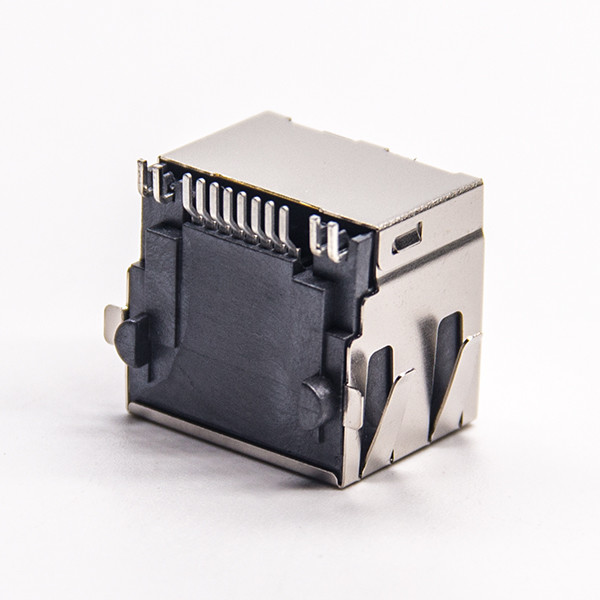

    Product Dsiplay
    LED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder TerminationLED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder TerminationLED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder TerminationLED SMT 8P8C RJ45 Modular Jack For Ethernet With Shrapnel 1 Port Solder Termination
    Product Information

    Current rating

    3A continuous

    Insulation resistance

    500min

    Dielectric withstanding voltage

    1500V min

    Voltage rating

    1000V min

    Mating force

    5N to 20N

    UNmating force

    8N to 20N

    Operating Temperature

    0°C ~ 70°C

    Contact Material Plating Thickness

    Gold 6.00µin/15.00µin/30.00µin/50.00µin

    Shield Material

    Brass

    Housing Material

    Thermoplastic

    RoHS Compliant

    YES-RoHS-5 WIth Lead in Solder Exemption

    ELECTRICAL:

    1. VOLTAGE RATING:125 VAC RMS.

    2. CURRENT RATING:1.5 AMP.

    3. CONTACT RESISTANCE:50 milliohms max.

    4. INSULATION RESISTANCE:500 megohms min @ 500V DC.

    5. DIELECTRIC WITHSTANDING

    RESISTANCE:1000V AC RMS 50Hz. 1min.


    MECHNICAL:

    1. HOUSING MATERIAL:glass filled polyester(UL94V-0).

    2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).

    3. PLATING:glod plating over nickel.

    4. DURRABILITY:750 cycles min.

    5. PCB RETENTION PRE-SOLDER:1 LB min.

    6. PCB RETENTION POST-SOLDER:10 LB min.


    ENVIRONMENTAL:

    1. STORAGE:-40℃ TO +85℃.

    2. OPERATION:0℃ TO 70℃

    3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

    MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.


    Type of Shipping

    Connect Us
    Why Choose Us

    What can we do for you?

    1. We can offer free samples.

    2.Various operation force, height, and color for your choice.

    3. large quantity discount


    Why us?

    1. Excellent quality with competitive price

    We are manufacturer making RJ45 more than 15 years.

    2.Quality guaranty

    Check quality one by one before shipping, We have good quality-control team and

    precision testing machine to control the quality seriously

    3. Customize acceptabl

    according your design to produce quality product.
