    Integrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 Port

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : 1051-208004
    Certification : ISO:9001;ISO:14001
    Price : $3-$5
    Payment Terms : L/C, T/T
    Supply Ability : 5,000,000 PCS / Month
    Delivery Time : 7 - 10 Work Days
    • Product Details
    • Company Profile

    Integrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 Port

    Free Sample Without Integrated Magnetic With LED EMI Finger 2x4 Port RJ45 Female Connector

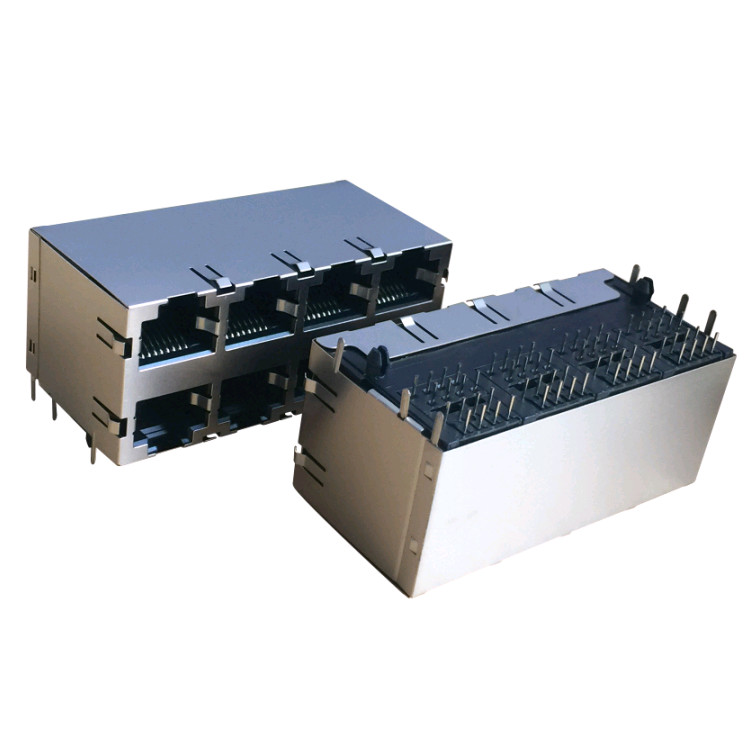

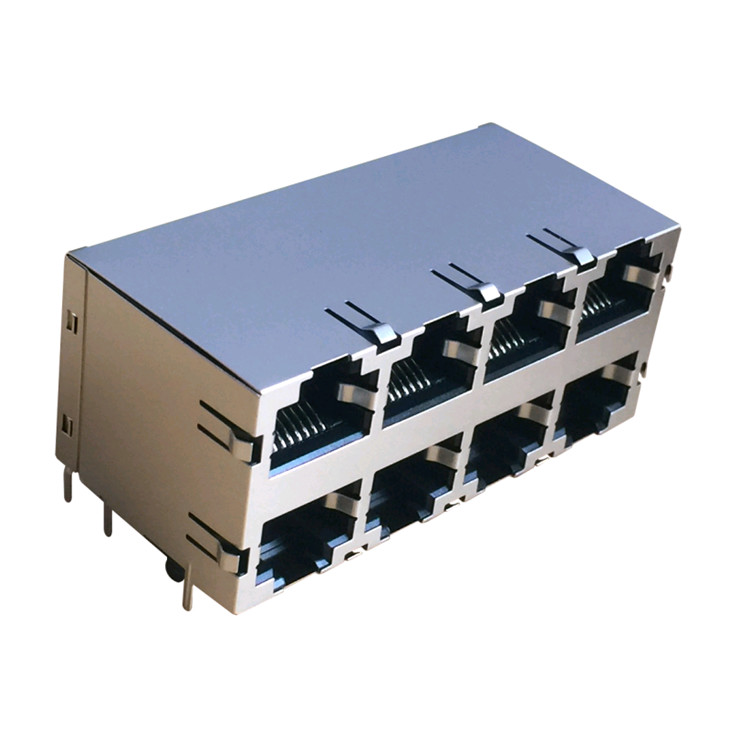

    Product Dsiplay
    Integrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 PortIntegrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 PortIntegrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 PortIntegrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 PortIntegrated Magnetic RJ45 Female Connector With LED EMI Finger 2x4 Port
    Product Information

    LED Color

    Green - Yellow

    Shielding

    Shielded, EMI Finger

    Features

    Board Guide

    Tab Direction

    Up

    Contact Material

    Phosphor Bronze

    Packaging

    Tray

    Operating Temperature

    0°C ~ 70°C

    Contact Material Plating Thickness

    Gold 6.00µin/15.00µin/30.00µin/50.00µin

    Shield Material

    Brass

    Housing Material

    Thermoplastic

    RoHS Compliant

    YES-RoHS-5 WIth Lead in Solder Exemption


    MECHNICAL:

    1. HOUSING MATERIAL:glass filled polyester(UL94V-0).

    2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).

    3. PLATING:glod plating over nickel.

    4. DURRABILITY:750 cycles min.

    5. PCB RETENTION PRE-SOLDER:1 LB min.

    6. PCB RETENTION POST-SOLDER:10 LB min.


    ENVIRONMENTAL:

    1. STORAGE:-40℃ TO +85℃.

    2. OPERATION:0℃ TO 70℃

    3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

    MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
