USB Female Connector With One USB Interface Modular Jack And Shield Socket

Specifications

Material:

1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selectine Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option

Feature:

1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better

Electrical:

Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax

Mechanical:

1. Durability:750 CYCLES MIN

2. PCB Rentention pre-solder:1LB MIN

Environmental:

1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Opration Temperature 0°C~+70°C

Lead-free process,compliant RoHS

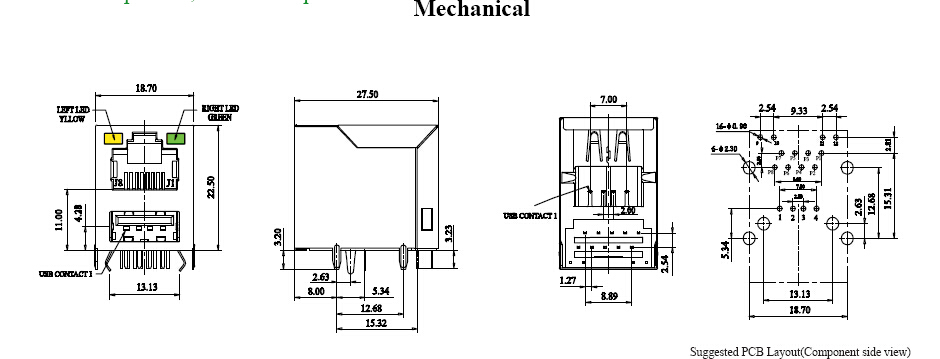

Drawing

Shielded RJ45 Female Connector With One USB Modular Jack And Network Socket

LED

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1) New Project: Strong technical and ideal support your new design
2)Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.
3) Free Samples:3-5 PCS of each part number
4) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5) Customer complaint:24-48 hours reply 8D report
6) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits if customers are not satisfied)

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,

packing .All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
