Single Port 10P10C Magnetic RJ45 Ethernet Jack Female Stacked With Shield

Specifications

Electrical:

1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA　bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz

Operating and storage temperatures:

1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃

Application:

1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box

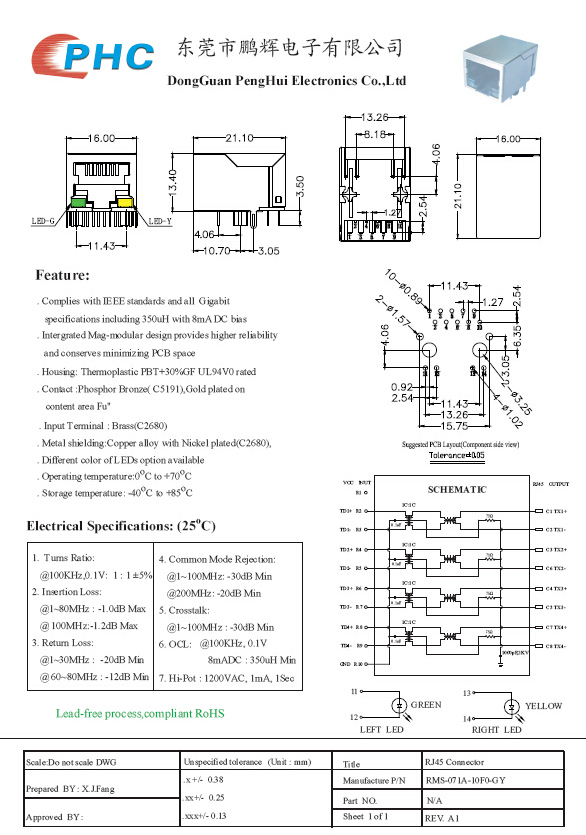

Drawing

Single Port 10P10C Magnetic RJ45 Ethernet Jack Female Stacked With Shield

(PHC)
