    Shielded RJ45 Modular Jack RJ45 Magjack 8P8C 2 Port With LED Gold Plated

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : RJ45 8P8C with LED 2port tab up
    Certification : ISO9001 : 2008 , SGS , RoHs
    Price : USD 0.2 ~ 0.5 PCS
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5,000,000 PCS / Month
    Delivery Time : 7 - 10 Work Days
    • Product Details
    • Company Profile

    Shielded RJ45 Modular Jack RJ45 Magjack 8P8C 2 Port With LED Gold Plated


    Shielded RJ45 Modular Jack 8P8C 2 Port With LED Gold Plated


    Series

    Connectors, Interconnects
    Connector Type

    RJ45 Modular Jack

    Mounting Type

    Thru-Hole

    Orientation

    8P8C Side Enter

    Termination

    Solder

    LED Color

    Yellow / Green

    Shielding

    Shield


    NOTES:


    ELECTRICAL:


    1. VOLTAGE RATING:125 VAC RMS.
    2. CURRENT RATING:1.5 AMP.
    3. CONTACT RESISTANCE:50 milliohms max.
    4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
    5. DIELECTRIC WITHSTANDING


    RESISTANCE:1000V AC RMS 50Hz. 1min.


    MECHNICAL:


    1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
    2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
    3. PLATING:glod plating over nickel.
    4. DURRABILITY:750 cycles min.
    5. PCB RETENTION PRE-SOLDER:1 LB min.
    6. PCB RETENTION POST-SOLDER:10 LB min.


    ENVIRONMENTAL:


    1. STORAGE:-40℃ TO +85℃.
    2. OPERATION:0℃ TO 70℃
    3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)


    MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

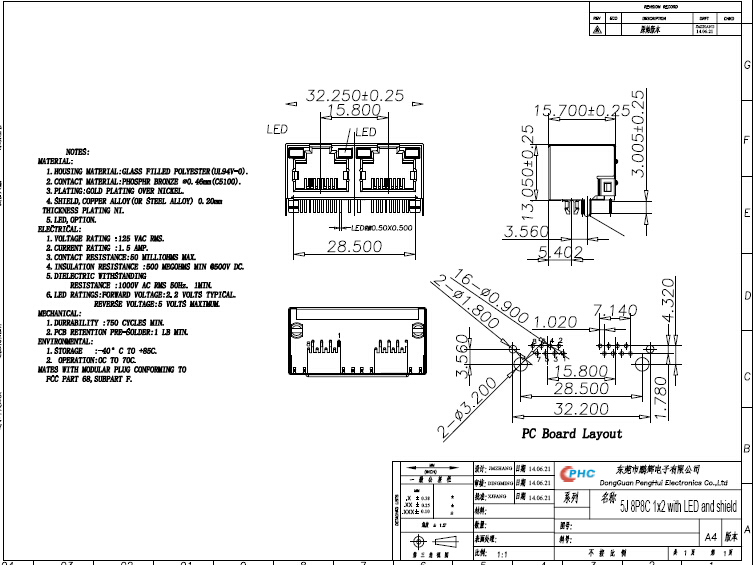

    Drawing


    Shielded RJ45 Modular Jack 8P8C 2 Port With LED Gold Plated



    Why Choose PengHui


    Quality :


    Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .


    Manufactured under strict controls

    RoHS compliance

    ISO 9001:2008

    OEM for PULSE

    UL Certification

    Active Environmental policy

    Reach Cetitifaction

    Every module tested 3times (not just batch tested)


    Unit Price

    Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

    All the step are doing by ourself. So we can control the cost
    PHC have more than 30 units automation equipments to product as possible
    PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
    With large scale of production lines, we can reach to cost reduction at the most extent


    Production&Testing

    PHC have more than 30 units automation equipments to product as possible
    PHC Every Magnetic RJ45 tested 3times (not just batch tested)
    PHC Every SMT part used Automation testing and packing.


    Service

    PHC Offer good pre-sales & after-sales service &Strong technical support


    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product

    and save time.

    3. Free Samples:3-5 PCS of each part number.

    4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    5. Customer complaint:24-48 hours reply 8D report.

    6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

    or repair kits if customers are not satisfied


    Lead Time

    With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer

    the fastest .
    Lead time,and the particular case is according to the situation.


    Case.1

    Stock

    25%

    Case.2

    3-4 Weeks

    70%

    Case.3

    5-6 Weeks

    5%


    Design &Technical strength


    We have many more than 20years experience in connector industry engineer can support

    your new project.Design a new tooling time : 30-45 workdays


    Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
