0.5mm Pitch FPC Connector Under Lock SMT Type H=1.2mm Down Contact

Specifications

Material:

1. Insulator:Glass-Reinforced Thermoplastic.UL94V-0 color :black
2. Contact:Copper Alloy
Contact plating:Gold plating on contact Area. over Nickel underplating overall
3. Rohs Compliant
4. Durability:250cycles min

Elecrical:

1. Voltage Rating:30VAC.
2. CuRRENT rATING:0.5A
3. Contact Resistance:40 milliohms max
4. Dielectric with standing Volaage:500VAC min
5. Insulation Resistance 1000 Megaohas Min

Environmental:

1. Temperature Range:-40℃+85℃

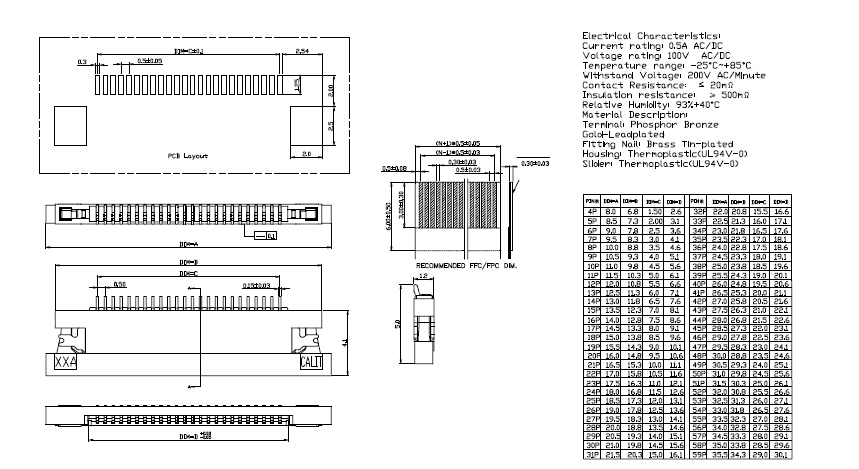

Drawing
