    Low Profile Cat3 RJ45 Modular Jack 8P8C Sinking Board HF Housing 90°Angle Right

    Ask Lasest Price
    Brand Name : PHCONN
    Model Number : 1060-208102HF
    Certification : ISO9001:2008
    Price : USD 1.0 pcs
    Payment Terms : T/T, Western Union, , L/C
    Supply Ability : 100000pcs/M
    Delivery Time : About 2 Weeks
    • Product Details
    • Company Profile

    Low Profile Cat3 RJ45 Modular Jack 8P8C Sinking Board HF Housing 90°Angle Right


    Low Profile RJ45 Female Jack 8P8C Sinking Board , HF Product , Shielded


    Specifications


    Connector TypeSinking Jack
    Number of Positions/Contacts8p8c (RJ45, Ethernet)
    Number of Ports1
    Number of Rows1
    Mounting TypeThrough Hole
    Orientation90° Angle (Right)
    TerminationSolder
    ShieldingShielded
    RatingsCat3
    FeaturesBoard Lock
    LED ColorNo
    Tab DirectionUp
    Contact MaterialCopper Alloy
    Contact FinishGold
    Contact Finish ThicknessFlash
    Housing Material

    Thermoplastic


    Eceatrical


    1. voltage Rating:125 val
    2. Insnlation Resiitance:500M min
    3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min


    Mechanical

    1. Operating:750 cycles min


    Materical


    1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
    2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
    3. Gold plating :3u inch6u inch150u inch30u inch50u inch


    Environmental


    1. Working Temeperature:-20℃to 75℃
    2. Storage Temeperature:-45℃to 85℃


    Mates with modular plug conforming to FCC part 68,subpart F.

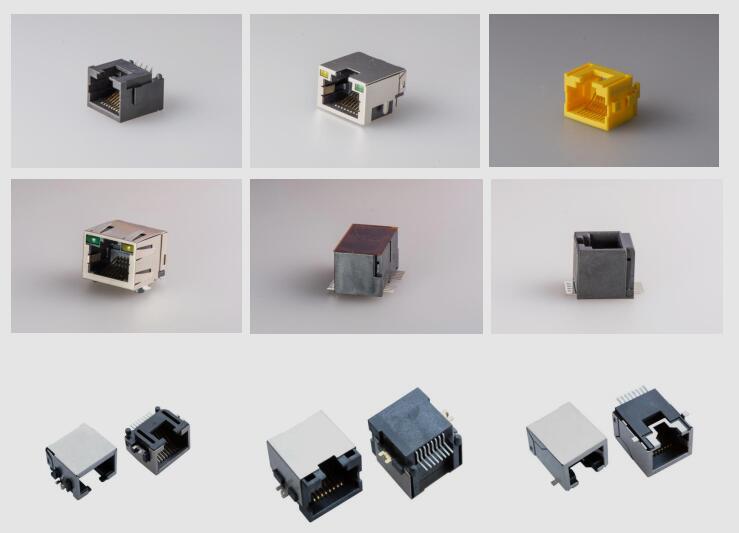

    Product Picture



    Product Drawing



    Why Choose PengHui


    Quality :


    Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing ,

    packing .All the step are doing by ourself . So we can control the quality .


    Manufactured under strict controlsRoHS compliance
    ISO 9001:2008OEM for PULSE
    UL CertificationActive Environmental policy
    Reach CetitifactionEvery module tested 3times (not just batch tested)

    Unit Price


    Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc


    All the step are doing by ourself. So we can control the cost
    PHC have more than 30 units automation equipments to product as possible
    PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
    With large scale of production lines, we can reach to cost reduction at the most extent

    Production&Testing


    PHC have more than 30 units automation equipments to product as possible
    PHC Every Magnetic RJ45 tested 3times (not just batch tested)
    PHC Every SMT part used Automation testing and packing.

    Service

    PHC Offer good pre-sales & after-sales service &Strong technical support


    New Project: Strong technical and ideal support your new design

    Existing projects: Try to help customer to save the cost to offer the good quality product

    and save time.

    Free Samples: 3-5 PCS of each part number.
    Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
    Customer complaint: 24-48 hours reply 8D report.

    Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

    or repair kits , if customers are not satisfied)


    Design &Technical strength


    We have many more than 20years experience in connector industry engineer can support

    your new project.Design a new tooling time : 30-45 work days


    Other Sinking Series



    1060-208102 RJ45 1PORT SINKING 1.pdf
